Voltage levels, current capacity, breaking traits, and weather compatibility are a few of the important things that need to be considered when choosing the right battery protection fuse for energy storage systems. A fuse that is properly chosen will stop short circuits, overcurrent conditions, and heat runaways that could hurt costly battery systems or create unsafe situations. When engineers and procurement workers choose fuses for lithium-ion battery packs, inverter systems, and energy storage setups, they need to think about things like electrical specs, how to certify them, and whether they will work with current safety plans.
Understanding Battery Protection Fuses in Energy Storage Systems
Battery security fuses are important safety features that cut off the flow of electricity when too much power could damage the system. These devices use fusible parts that melt or trigger when the current level exceeds a safe level. This isolates faulty conditions before any damage can happen.
Operating Principles and Fuse Element Design
Protective fuses work on the principle of carefully designed flexible elements that react to overcurrent conditions within milliseconds. Ultra-rapid protection features are needed for modern energy storage systems, especially the aR (ultra-rapid semiconductor protection) class fuses, which can stop faults in less than 1 millisecond. This quick action stops temperature runaway in lithium-ion battery cells and saves delicate power systems from harm.
Today's fuse designs use high-tech materials like silver metal elements in ceramic bodies to better handle heat and prevent arcs. These materials can handle very high and low temperatures, from -40°C to 125°C. They keep the same protective qualities even after more than 100,000 heat cycles.
Integration with Comprehensive Protection Systems
Fuses quickly stop faults, but they only work in addition to, not instead of, other safety devices. Battery Management Systems (BMS) keep an eye on the state of the cells and protect them, while circuit breakers protect against overcurrent and can be reset after tripping. Fuses are great at protecting systems from catastrophic faults because they respond in milliseconds. This makes them an important part of multi-layered security systems.
Key Selection Criteria for Battery Protection Fuses
Choosing the best battery fuses involves taking a close look at a number of technical factors that have a direct effect on how well the system works and how safe it is. To make sure that effective operation across a range of situations is possible, engineers must find a balance between electricity rates and environmental needs.
Electrical Rating Considerations
power numbers show the highest power in a device that the fuse can safely cut off. DC voltage rates of 1000V work with high-voltage battery packs for business and industrial uses in today's energy storage systems. AC rates of 1200V work with grid-tied inverter systems and charge stations.
The rates in use must be in line with the currents when working normally and at the same time make sure that safety gaps are taken into account. For normal uses, the typical range is between 35A and 630A, but some special systems may need rates as high as 20kA. The breaking capacity specs tell you the most fault current that the fuse can safely stop. The AC 100kA and DC 50kA values make sure that there is strong safety even in serious short-circuit situations.
Environmental and Operational Factors
Energy storage systems often have to work in tough settings that require strong parts. Vibrations, temperature changes, and humidity can cause fuses to fail. Electromagnetic interference can also affect their dependability and life. Automotive-grade fuses made for electric vehicles usually go beyond the standards used in other industries. This makes them more durable for energy storage systems that are used in cars and that stay in place.
Following IEC 60269, ISO 8820, JASO D622, GB/T31465, and other standards for certification makes sure that the product is accepted in the global market and follows the rules. RoHS compliance shows that a company cares about the environment, and CE, TUV, and CCC approvals make it easier for the product to be used in other countries.
Testing and Troubleshooting Battery Protection Fuses
Comprehensive testing makes sure that fuses are working properly and that security is working together correctly in energy storage systems. Regular checks and troubleshooting tests keep the system reliable and avoid surprising problems.
Diagnostic Testing Procedures
The first step in the process is visual analysis, which looks at the battery charger fuse bodies for physical harm, rust, or signs of heat stress. Electrical testing with accurate multimeters checks continuity and resistance readings. At the same time, specialized fuse testers give you the exact fault modeling features you need.
When used correctly, sophisticated troubleshooting tools can safely test the trip features of a system by recreating overcurrent situations. These tests show that the fuses work within the stated time-current curves and provide enough safety to work with upstream and downstream protective devices.
Common Failure Analysis
Understanding the ways that systems usually fail makes it easy to fix problems and make systems run better. Nuisance tripping happens a lot when the current levels are too low or when brief conditions exceed the fuse's limit. On the other hand, a slow reaction or failure to stop could mean that the breaking capacity is too small or the fuse elements have degraded and need to be replaced.
Systematic fault analysis tells you when a part has failed or there is a problem with the system design. This allows you to take focused corrective actions that make the system more reliable while also lowering maintenance costs and downtime.
Procurement Guide for Battery Protection Fuses
To make sure you have a stable supply chain and get help from people who know what they're doing, when you buy safe fuses, you should consider the quality of the products, the skills of the suppliers, and the service they offer. Procurement choices affect both the short-term and long-term success of the project.
Supplier Evaluation and Selection
Manufacturers with a history in the car and industry sectors offer proven stability and a lot of expert help. Businesses such as Xi'an Green Power Technology use decades of experience and work with top universities and recognized quality systems like IATF 16949 and ISO 9001.
The ability to customize makes it possible to create specific solutions for unique needs, and quick return times help with tight project plans. The company can make over 5 million units every month, and it's easy to prototype and launch on a small scale with a minimum order of just 5 pieces.
Cost Optimization and Supply Chain Management
To find the right balance between cost and quality, one needs to look closely at the total cost of ownership, which includes the price of buying, installing, maintaining, and replacing an item. Premium providers often offer better value by being more reliable, offering longer contracts, and giving more expert help.
Global certification portfolios speed up time-to-market by getting rid of unnecessary testing and approval steps. Strategic relationships with qualified makers make it easier to get things done and make sure that product quality and shipping performance are always good.
Best Practices to Optimize Battery Protection Fuse Usage in Energy Storage Systems
Following the best practices in the field makes battery protection fuses work better and makes sure that they can be used with other systems that protect people. These methods come from a lot of experience in the field and thorough testing in a wide range of situations.
System Integration and Coordination
In the security hierarchy, putting the switch in the right place makes sure that selective coordination works to separate problems without impacting the healthy parts of the system. When you use Battery Management Systems, you can do smart tracking and tests that tell you what repair needs to be done before things break.
Managing temperature means making sure there is enough air flow and heat loss so that trips don't happen during normal operation. Proper installation keeps vibration stress low and makes sure that the whole system lifetime there are good electrical connections.
Real-World Application Success
Choosing the right switch can help battery packs last longer and lower the number of guarantee claims. This has been shown in case studies from companies that make electric vehicles. Solar installation projects have shown that proper fuse coordination lowers system downtime while still following the rules for the grid.
These real-world examples back up theoretical design methods and show that the security system works well in a variety of energy storage settings, from home solar panels to utility-scale battery farms.
Xi'an Green Power Technology: Advanced Battery Protection Solutions
Xi'an Green Power Technology specializes in cutting-edge battery security solutions that are designed for new systems that store energy. We offer a wide range of products, including both standard and custom-designed fuses that meet strict safety, reliability, and performance standards for both car and commercial use.

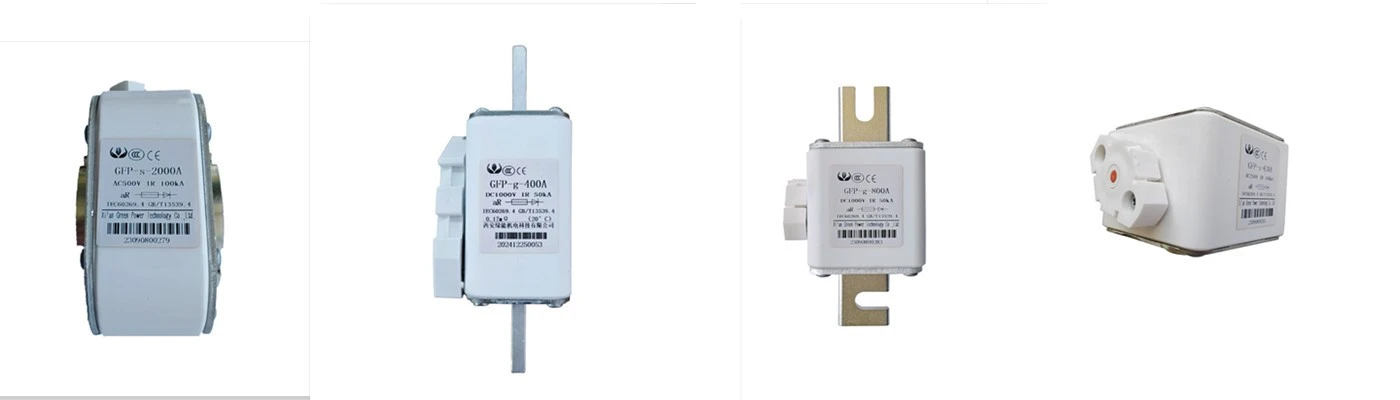

The current for our battery protection fuses runs from 35A to 630A, and they have DC 1000V/AC 1200V values and great breaking capacities of AC 100kA/DC 50kA. These standards are able to handle a wide range of uses, from battery packs for electric cars to large-scale energy storage systems for the grid. The aR protection class gives ultra-rapid semiconductor security that current power systems need.
Quality standards like CE, TUV, CCC, RoHS, IEC 60269, and ISO 8820 make sure that people all over the world follow the rules and are okay with the products. Our IATF 16949-certified ways of making things ensure uniform quality and quick customization for special needs. Minimum order numbers of only 5 pieces help with concept development and uses with low turnover.
Conclusion
To choose the right battery protection fuses, you need to carefully consider electricity values, weather conditions, and how the fuses will work with other parts of the protection system. To make sure they work in a range of situations, modern energy storage systems need to be quick, strong, and certified for use around the world. If you buy things strategically from qualified providers with proven experience and the ability to customize, you can get the best starting cost and long-term dependability. Following the best advice for testing, installation, and upkeep makes a security system work better and lowers the costs of owning it overall.
FAQs
Why do lithium-ion battery systems need a battery protection fuse?
Battery safety fuses stop overcurrent and short circuits that could lead to heat runaway, a fire, or an explosion in lithium-ion battery systems. They quickly cut off power to faults, which saves single cells and whole battery packs from very severe damage.
How can I find out the right fuse value for the energy storage system I use?
Choose fuses with voltage ratings higher than the system's highest voltage and current ratings that match the normal working current plus a safety limit. Think about inrush currents, external factors, and working with other safety devices to make sure that the best security is given without annoying tripping.
Can battery protection fuses be used again after they have been activated?
Standard fuses only work once, so they need to be changed after operation to keep protecting the system. PTC fuses that are resettable can only be used a few times, and their safety features may not work for every situation that needs lasting fault separation.
Secure Your Energy Storage Investment with Green Power
Partner with Xi'an Green Power Technology to ensure optimal protection for your energy storage systems. Our automotive-grade battery protection fuses are proven to be reliable and can be quickly customized to meet the needs of your unique application. We are a top battery protection fuse maker with more than twenty years of experience, and we help our customers technically all the way from the first choice through long-term care.
Our approved quality systems and global compliance products speed up your time-to-market and make sure that performance is always the same, no matter what the conditions are. Our team offers professional advice and top-notch goods that will keep your valuable energy storage investments safe, whether you need off-the-shelf items for instant usage or custom solutions for specialized uses.
Proper security can make a big difference. Email us at fusemaker@163.com if you want to talk about the details of our technology or get a quote.
