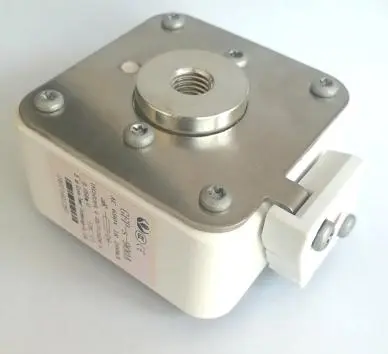

Energy Storage
GFP-s-DC300V/630A-1600A
FEATURE
Rated voltage:DC300V
Rated current:630A～1600A
Breaking Capacity : AC100kA、DC50kA
Protection:aR
RoHS Compliance
TVU CCC,CE Certified
Conform to IEC60269，environmentally ISO8820,JASO D622and GB/T31465
TECHNICAL PARAMETERS
|
NO. |
Model |
Rated current(A) |
I²t(A²s) |
Power(W) |
Installation
|
|
|
Pre Arc |
Fuse |
|||||
|
1 |
GFP-s-630A |
630 |
57500 |
296000 |
85 |
Bolt M12 |
|
2 |
GFP-s-700A |
700 |
67132 |
326810 |
98 |
|
|
3 |
GFP-s-800A |
800 |
71082 |
406515 |
105 |
|
|
4 |
GFP-s-900A |
900 |
87132 |
466380 |
110 |
|
|
5 |
GFP-s-1000A |
1000 |
103496 |
506515 |
118 |
|
|
6 |
GFP-s-1200A |
1200 |
127576 |
531131 |
125 |
|
|
7 |
GFP-s-1400A |
1400 |
128000 |
576745 |
130 |
|
|
8 |
GFP-s-1600A |
1600 |
138200 |
326810 |
147 |
|

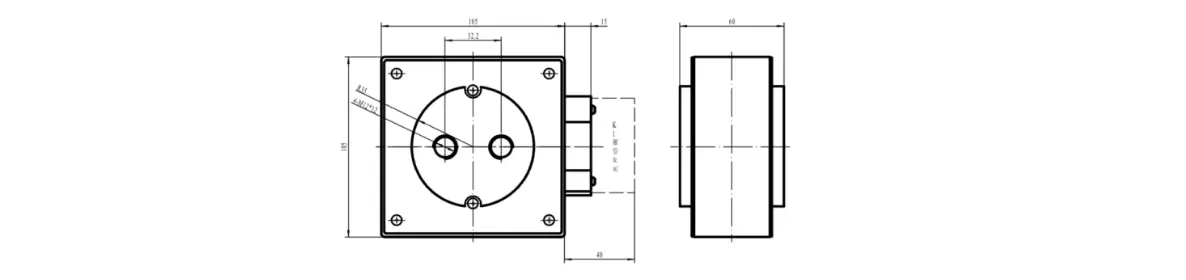

STRUCTURE EXAMPLE
CHARACTERISTIC CURVE

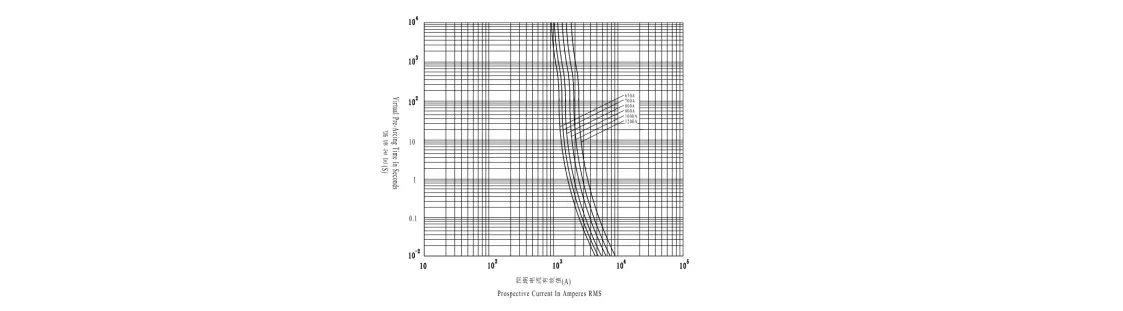

Pre-Arc Time and prospective current

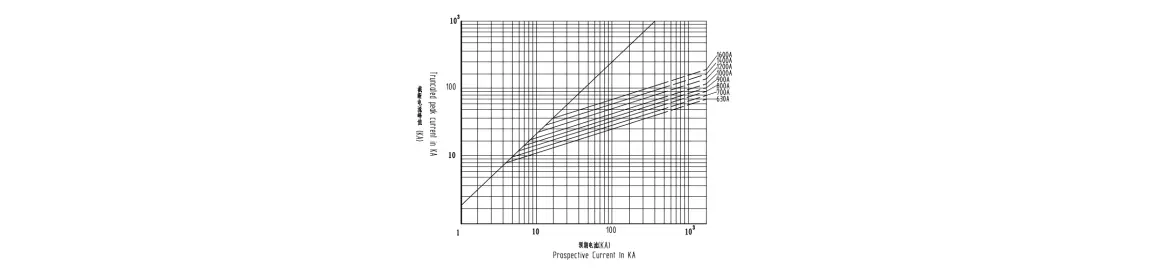

Peak let-through current
OEM is available; for other models of fuses, please feel free to contact us.
