1000V DC fuses play a crucial role in solar combiner boxes, serving as the first line of defense against potentially catastrophic overcurrents and short circuits. These specialized fuses are designed to protect expensive solar equipment, ensure system reliability, and enhance overall safety in large-scale photovoltaic installations. By rapidly interrupting fault currents, 1000V DC fuses prevent damage to sensitive components, minimize downtime, and reduce fire risks. Their high voltage rating and fast-acting nature make them indispensable for modern solar farms operating at higher voltages to improve efficiency and reduce energy losses. Understanding the importance of these fuses is key for solar project developers, installers, and operators seeking to maximize system performance and longevity.
The Evolution of Solar Power Systems and the Need for 1000V DC Fuses
Increasing Voltage Levels in Solar Arrays
Over the past decade, the solar industry has witnessed a significant shift towards higher voltage systems. What was once a standard 600V DC setup has now evolved to 1000V DC and even 1500V DC in some large-scale installations. This transition is driven by the need for greater efficiency and cost-effectiveness in solar power generation.
Higher voltage systems allow for longer strings of solar panels, reducing the number of combiner boxes and inverters required. This, in turn, leads to lower balance of system (BOS) costs and improved overall system efficiency. However, with these benefits come new challenges in terms of electrical protection.
The Role of Combiner Boxes in Modern Solar Farms
Combiner boxes serve as critical junction points in solar arrays, consolidating the output from multiple strings of solar panels into a single main feed. These boxes typically house various components, including string fuses, surge protection devices, and monitoring equipment.
As solar farms grow in size and complexity, the importance of well-designed combiner boxes becomes increasingly apparent. They not only simplify wiring and reduce installation costs but also provide a centralized point for system protection and monitoring.
Why Traditional Fuses Fall Short in High-Voltage Solar Applications?
Traditional low-voltage fuses are ill-equipped to handle the demands of modern high-voltage solar systems. The unique characteristics of DC power in photovoltaic applications, such as the potential for sustained arcs and the absence of natural zero-crossing points, require specialized fuse designs.
Standard fuses may fail to interrupt fault currents effectively in 1000V DC systems, leading to catastrophic failures, equipment damage, and potential fire hazards. This is where purpose-built 1000V DC solar fuses come into play, offering the necessary protection for today's advanced solar installations.

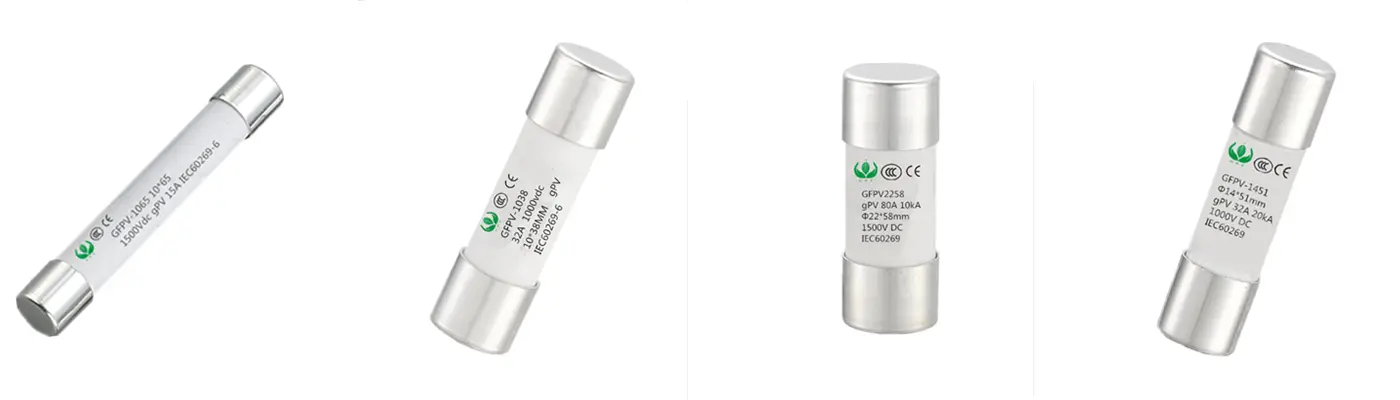

Key Features and Benefits of 1000V DC Fuses in Solar Applications
Enhanced Safety and Protection Mechanisms
1000V DC fuses are engineered with advanced arc-quenching technologies specifically tailored for high-voltage DC circuits. These fuses utilize specialized filler materials and precise internal geometries to rapidly extinguish arcs and interrupt fault currents.
The enhanced safety features of these fuses include:
- Fast response times to overcurrent events
- High breaking capacity, typically up to 20kA or more
- Reliable performance across a wide temperature range (-40°C to 125°C)
- Low power dissipation during normal operation
By incorporating these advanced protection mechanisms, 1000V DC fuses significantly reduce the risk of electrical fires and equipment damage in solar combiner boxes.
Compliance with International Standards and Certifications
Quality 1000V DC fuses for solar applications are designed and manufactured to meet stringent international standards. Key certifications and standards include:
- IEC 60269-6 for photovoltaic fuse links
- UL 248-19 for photovoltaic fuses
- EN 60947-3 for switch-disconnectors
- TÜV certification for quality and safety
Compliance with these standards ensures that the fuses meet the specific requirements of solar PV systems, including cyclic loading, thermal performance, and long-term reliability under harsh environmental conditions.
Long-Term Reliability and System Uptime
Investing in high-quality 1000V DC fuses pays dividends in terms of system reliability and reduced maintenance costs. These fuses are designed for longevity, with features such as:
- Corrosion-resistant materials for extended service life
- Stable electrical characteristics over time
- High cycling capability to withstand daily thermal fluctuations
- Clear indication mechanisms for easy fault detection
By ensuring consistent protection throughout the solar farm's lifecycle, 1000V DC fuses contribute to maximizing system uptime and energy production. This reliability is crucial for maintaining the economic viability of large-scale solar projects.
Selecting and Implementing 1000V DC Fuses in Solar Combiner Boxes
Sizing and Selection Criteria for Optimal Protection
Choosing the right 1000V DC fuse for a solar combiner box requires careful consideration of several factors:
- String current: Typically 1.25 to 1.56 times the short-circuit current (Isc) of the PV string
- Voltage rating: Must match or exceed the maximum system voltage (1000V in this case)
- Breaking capacity: Should be higher than the maximum prospective fault current
- Time-current characteristics: Coordinated with other protective devices in the system
- Environmental conditions: Temperature range, humidity, and pollution level at the installation site
Proper sizing ensures that the fuse provides adequate protection without nuisance tripping, optimizing both safety and system availability.
Installation Best Practices for Maximum Effectiveness
To ensure the 1000V DC fuses perform as intended, follow these installation best practices:
- Use appropriate fuse holders rated for the voltage and current
- Ensure proper torque on all electrical connections to prevent heat build-up
- Implement adequate ventilation in the combiner box to manage heat dissipation
- Install fuses in a vertical orientation to optimize their arc-quenching capabilities
- Protect fuses from direct sunlight and extreme weather conditions
- Label fuses clearly for easy identification during maintenance
Proper installation not only enhances safety but also extends the operational life of the fuses and the entire combiner box assembly.
Maintenance and Replacement Strategies
While 1000V DC fuses are designed for long-term reliability, regular maintenance is essential to ensure continued protection:
- Conduct visual inspections for signs of degradation or discoloration
- Perform thermal imaging to detect potential hotspots
- Check and retighten connections periodically
- Replace fuses preemptively based on the manufacturer's recommended service life
- Keep spare fuses on hand for quick replacement in case of a blown fuse
Implementing a proactive maintenance strategy helps prevent unexpected downtime and ensures the solar farm operates at peak efficiency throughout its lifespan.
Conclusion
1000V DC fuses are indispensable components in modern solar combiner boxes, providing critical protection for high-voltage photovoltaic systems. Their specialized design, compliance with international standards, and ability to rapidly interrupt fault currents make them essential for ensuring safety, reliability, and longevity in large-scale solar installations. By carefully selecting, properly installing, and diligently maintaining these fuses, solar farm operators can maximize system uptime, reduce maintenance costs, and safeguard their investment in renewable energy infrastructure. As the solar industry continues to evolve towards even higher voltage systems, the role of advanced DC fuses in combiner boxes will only grow in importance.
FAQs
What is the difference between a standard fuse and a 1000V DC solar fuse?
A 1000V DC solar fuse is specifically designed for high-voltage photovoltaic applications, featuring advanced arc-quenching technology and the ability to handle sustained DC currents. Unlike standard fuses, they are rated for 1000V DC operation and comply with solar-specific standards like IEC 60269-6.
How often should 1000V DC fuses be replaced in solar combiner boxes?
While 1000V DC fuses are designed for long-term use, it's recommended to follow the manufacturer's guidelines for replacement intervals. Generally, proactive replacement every 5-7 years or based on regular inspection results is advisable to ensure continued protection.
