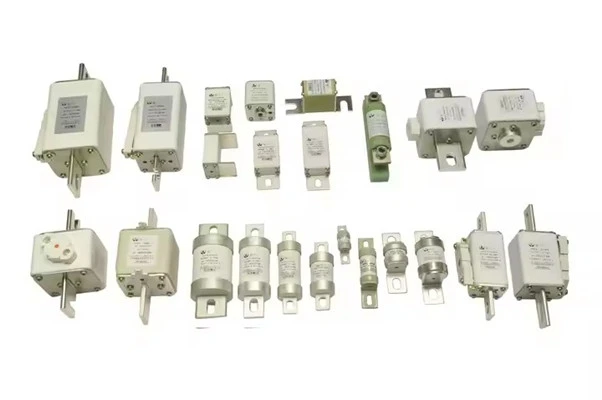

Battery storage fuses are specialized protection devices that avoid catastrophic failures and thermal runaway events in Battery Energy Storage Systems (BESS) by interrupting electrical flow under fault circumstances. When too much current passes through the circuit, these vital safety components physically melt their metallic components, allowing for fail-safe disconnection that shields costly battery cells, inverters, and downstream equipment from potentially catastrophic overload or short circuit situations.
Understanding Battery Storage Fuses: Definition and Function
Battery storage fuses are specialized safety devices designed to meet the particular requirements of energy storage applications. These parts must manage the unique features of battery systems, such as high inrush currents, DC voltage difficulties, and the possibility of persistent fault conditions that could result in thermal runaway events, in contrast to general-purpose electrical fuses.
Core Operating Principles
When current above preset thresholds, a fusible element is regulated to melt, which is the basic function of battery storage fuses. Electronic protection measures cannot match the dependable, failsafe reaction that this physical interruption technique offers. When fault circumstances arise, the fuse element melts in milliseconds, leaving an air gap that securely stops current flow and isolates the circuit section that is impacted.
The design of modern battery and battery storage fuses incorporates advanced materials and construction techniques that optimize performance for energy storage applications. High-density quartz sand filling enhances arc suppression capabilities, while precision-engineered fuse elements ensure consistent response times across varying operating conditions. These design elements become particularly important in DC applications where arc suppression presents unique challenges compared to AC systems.
Critical Performance Parameters
Voltage rating represents one of the most fundamental specifications for battery storage fuses, with modern BESS installations often requiring protection for systems operating at 750V DC or higher. Current ratings must accommodate both normal operating conditions and the substantial inrush currents that occur during charging cycles or system startup sequences. Breaking capacity specifications determine the maximum fault current that a fuse can safely interrupt, with high-performance units capable of handling 50kA DC or even 100kA AC fault currents.
Response characteristics also play a crucial role in system protection effectiveness. Fast-acting fuses provide rapid response to short-circuit conditions, while time-delay designs prevent nuisance operation during normal charging or discharging transients. The selection between these response types depends on specific application requirements and coordination with other protective devices in the system.
Types and Specifications of Battery Storage Fuses for BESS
differing fuse types are needed for modern energy storage systems in order to meet the differing protection needs of various applications and system levels. Procurement specialists and engineers can choose the best components for their unique installation needs by being aware of these differences.
Cartridge and Inline Fuse Designs
High-power battery storage applications are dominated by cartridge-style fuses because of their strong design and excellent heat dissipation capabilities. These designs usually include ceramic or composite housings that provide superior mechanical protection for the internal fuse element while withstanding high temperatures. By keeping arc products contained and avoiding unintentional contact with live components, the enclosed design further improves safety.
Inline fuse configurations offer advantages in space-constrained applications where traditional cartridge mounting proves impractical. These designs integrate directly into wiring harnesses or bus bar assemblies, reducing overall system complexity while maintaining protection effectiveness. However, inline designs may have limitations in very high current applications where heat dissipation becomes critical.
Voltage and Current Rating Considerations
Battery storage fuses must accommodate the full range of operating voltages encountered in modern BESS installations. Systems operating at 750V DC represent common commercial and industrial applications, while utility-scale installations may require protection for even higher voltage levels. The DC nature of battery systems presents unique challenges for fuse design, as DC arcs prove more difficult to extinguish than AC arcs.
Current rating selection involves careful analysis of both normal operating currents and potential fault conditions. Modern battery storage fuses are available in ratings ranging from 35A for smaller residential systems up to 800A or higher for utility-scale applications. The wide current range accommodates diverse system architectures while ensuring optimal protection coordination across all system levels.
Breaking Capacity and Arc Suppression
Breaking capacity specifications define the maximum fault current that a fuse can safely interrupt without causing secondary damage or safety hazards. High-performance battery storage fuses achieve breaking capacities of 50kA DC through advanced arc suppression technologies and specialized filling materials. This capability proves essential in large battery systems where fault currents can reach substantial levels due to the low internal resistance of battery cells.
Arc suppression becomes particularly challenging in DC applications where the continuous voltage does not provide natural current zeros like AC systems. Modern fuse designs incorporate high-density quartz sand and specialized chamber geometries that rapidly cool and deionize the arc path, enabling reliable interruption even under severe fault conditions.
How to Select the Right Battery Storage Fuse for Your BESS
Selecting appropriate fuses for battery storage applications requires systematic evaluation of multiple factors that influence both protection effectiveness and system reliability. The selection process must balance protection sensitivity with operational requirements while ensuring compatibility with other system components.
System Voltage and Current Analysis
The selection process begins with comprehensive analysis of the battery system's electrical characteristics, including nominal voltage, maximum operating current, and potential fault current levels. Battery systems exhibit unique electrical behaviors that differ significantly from traditional power distribution applications, requiring specialized consideration during the selection process.
Normal operating currents in battery systems can vary dramatically depending on charge and discharge cycles, ambient conditions, and system loading. Peak charging currents often exceed steady-state values by substantial margins, particularly during rapid charging sequences or grid frequency regulation services. These variations must be accommodated in fuse selection while avoiding oversizing that could compromise protection sensitivity.
Coordination with Other Protection Devices
Effective fuse selection requires careful coordination with other protective devices in the battery system, including contactors, circuit breakers, the battery fuse, and electronic monitoring systems. The goal involves creating a protection hierarchy where fuses serve as the ultimate backup protection while allowing other devices to respond to less severe fault conditions..
Selective coordination becomes particularly important in complex BESS installations with multiple protection levels. The fuse characteristics must be chosen to allow upstream devices adequate time to respond to minor faults while ensuring rapid response to conditions that could threaten system safety or equipment integrity. This coordination requires detailed analysis of time-current curves and careful attention to manufacturing tolerances that could affect response times.
Environmental and Installation Considerations
Battery storage systems often operate in challenging environmental conditions that place additional demands on protective components. Outdoor installations may experience temperature extremes ranging from -40°C to +125°C, while humidity and contamination levels can vary significantly across different geographic locations.
The physical installation environment also influences fuse selection, particularly regarding mounting orientation, accessibility for maintenance, and integration with monitoring systems. Some applications benefit from fuses that incorporate auxiliary contacts for remote status indication, while others prioritize compact designs that minimize space requirements in densely packed battery enclosures.
Procurement and Supply Chain Insights for Battery Storage Fuses
Understanding procurement dynamics and supply chain considerations enables B2B buyers to make informed decisions that support project timelines while optimizing cost and performance outcomes. The battery storage fuse market presents unique challenges and opportunities that require specialized knowledge for effective procurement management.
Supplier Evaluation and Qualification
Successful procurement of battery storage fuses begins with thorough evaluation of potential suppliers based on technical capabilities, quality systems, and manufacturing capacity. Suppliers should demonstrate expertise in energy storage applications through relevant certifications, testing capabilities, and proven track records in similar projects.
Quality management systems represent critical evaluation criteria, particularly for large-scale installations where component reliability directly impacts project success. Suppliers operating under ISO 9001, IATF 16949, or similar quality standards typically provide more consistent products and better support for quality-related issues that may arise during project execution.
Technical support capabilities also play important roles in supplier selection, particularly for custom applications or challenging installation requirements. Suppliers who can provide application engineering support, custom design services, and ongoing technical consultation often deliver greater value than those focused solely on standard product supply.
Lead Times and Inventory Management
Battery storage projects often involve tight construction schedules that place premium value on reliable component delivery, including the battery fuse. Standard battery storage fuses may be available with relatively short lead times, while custom designs or high-volume orders may require extended manufacturing periods that must be factored into project planning.
Inventory management strategies should balance carrying costs against the risks of project delays due to component shortages. Many successful projects benefit from early procurement of long-lead items combined with strategic inventory positioning that accounts for potential design changes or quantity adjustments during project development.
Supply chain resilience has become increasingly important in recent years due to various disruptions affecting global manufacturing and logistics networks. Procurement strategies that incorporate multiple qualified suppliers or regional sourcing options can help mitigate risks while maintaining cost competitiveness.
Cost Optimization and Value Engineering
Effective cost management for battery storage fuses requires understanding of the factors that drive pricing across different product categories and supplier types. While unit costs represent obvious considerations, total cost of ownership analysis should include installation costs, maintenance requirements, and potential costs associated with component failures or performance issues.
Value engineering opportunities may exist through standardization of fuse types across multiple system levels or selection of suppliers who can provide comprehensive component packages rather than individual items. These approaches can reduce procurement complexity while potentially achieving cost savings through volume efficiencies.
Custom design services may provide cost advantages in high-volume applications where standard products do not optimally match system requirements. The development costs for custom solutions must be balanced against potential savings from improved performance, reduced installation complexity, or enhanced reliability characteristics.
Green Power's Advanced Battery Storage Protection Solutions
Xi'an Green Power Technology delivers cutting-edge battery storage fuses engineered specifically for the demanding requirements of modern energy storage systems. Our comprehensive product portfolio addresses the diverse protection needs of utility-scale BESS installations, commercial energy storage projects, and residential battery systems with proven reliability and performance.
Technical Excellence and Innovation
Our battery storage fuses operate effectively across DC voltage ranges up to 750V with current ratings spanning from 35A to 800A, accommodating virtually any energy storage application from residential systems to utility-scale installations. The impressive breaking capacity of 50kA DC ensures reliable protection even in high-energy fault conditions, while our aR protection characteristic provides optimal coordination with battery system requirements.
The advanced design incorporates specialized arc suppression technologies that enable reliable DC fault interruption, a critical capability that distinguishes our products from conventional protective devices. Temperature resilience from -40°C to +125°C ensures consistent performance across diverse environmental conditions, while IP67 environmental ratings provide robust protection against moisture and contamination in outdoor installations.
Quality Assurance and Certifications
Every Green Power battery storage and battery fuse undergo rigorous testing and quality control procedures that ensure consistent performance across large production quantities. Our comprehensive certification portfolio includes TUV, CE, CCC, and RoHS compliance, demonstrating adherence to international safety and environmental standards that facilitate global project deployment.
Compliance with multiple international standards including IEC 60269, ISO 8820, JASO D622, and GB/T31465 ensures compatibility with diverse regulatory requirements while providing confidence in long-term reliability. Our ISO 9001 and IATF 16949 quality management systems provide structured approaches to quality control that maintain consistency even for large-volume orders.
Customization and Service Capabilities
Green Power recognizes that energy storage applications often require customized solutions that address specific voltage, current, or form factor requirements. Our OEM and custom design services can adapt standard products to meet unique application needs while maintaining the quality and reliability characteristics that distinguish our offerings.
Manufacturing flexibility enables rapid response to customer requirements with lead times typically under 30 days for standard configurations. Our Xi'an-based production facility combines advanced manufacturing capabilities with logistics support that ensures reliable delivery to global markets. The minimum order quantity of just 5 pieces enables cost-effective procurement even for prototype or small-scale applications.
Conclusion
Battery storage fuses represent essential safety components that protect valuable energy storage investments while ensuring safe operation across diverse applications from residential systems to utility-scale installations. The selection, installation, and maintenance of these critical components requires careful attention to technical specifications, environmental conditions, and integration with other system protection devices.
Understanding the unique requirements of battery storage applications enables procurement professionals and engineers to make informed decisions that optimize both safety and performance outcomes. The combination of proper fuse selection, quality installation practices, and ongoing maintenance attention helps ensure reliable protection throughout the system lifecycle.
As energy storage technology continues evolving toward higher voltages and greater energy densities, the importance of specialized protective components will only increase. Partnering with experienced suppliers who understand these evolving requirements and can provide comprehensive technical support helps ensure successful project outcomes while maintaining the safety standards that protect both equipment and personnel.
FAQ
1. What ampere rating should I choose for my battery storage fuse?
The appropriate ampere rating depends on your system's maximum continuous current and safety factor requirements. Generally, size the fuse at approximately 125% of the maximum continuous circuit current, but always consult manufacturer specifications for precise recommendations. Consider both normal operating currents and potential inrush currents during charging cycles.
2. Can battery storage fuses replace circuit breakers in BESS applications?
Battery storage fuses can serve as effective protection devices in many BESS applications, particularly as backup protection or in applications where space constraints limit circuit breaker options. However, fuses require replacement after operation while circuit breakers can be reset. The choice depends on specific application requirements, accessibility for maintenance, and coordination with other protective devices.
3. What safety certifications should I verify when purchasing battery storage fuses?
Essential certifications include CE marking for European compliance, TUV certification for safety standards, and UL listings where applicable. Look for compliance with IEC 60269 international standards and relevant automotive standards like JASO D622 for vehicle applications. RoHS compliance ensures environmental responsibility while ISO quality certifications indicate robust manufacturing processes.
Partner with Green Power for Superior Battery Storage Fuse Solutions
Green Power stands ready to support your energy storage protection requirements with industry-leading battery storage fuses designed for demanding BESS applications. Our experienced engineering team provides comprehensive technical consultation to ensure optimal fuse selection and application for your specific project requirements, whether you're developing utility-scale installations or commercial energy storage systems.
As a trusted battery storage fuses manufacturer with over 20 years of innovation experience, we deliver proven solutions that meet the most stringent safety and performance standards. Our extensive certification portfolio and quality management systems ensure reliable products that support successful project outcomes while meeting international compliance requirements.
Contact our technical experts at fusemaker@163.com to discuss your battery storage protection needs and discover how Green Power's advanced fuse technologies can enhance the safety and reliability of your energy storage investments.
References
1. IEEE Standard 1547.4-2011, "Guide for Design, Operation, and Integration of Distributed Resource Island Systems with Electric Power Systems"
2. IEC 60269-7:2019, "Low-voltage fuses - Part 7: Supplementary requirements for fuse-links for the protection of semiconductor devices"
3. UL 1973, "Standard for Batteries for Use in Stationary, Vehicle Auxiliary Power and Light Electric Rail Applications"
4. National Electrical Code (NEC) Article 706, "Energy Storage Systems"
5. IEC 62933-5-2:2020, "Electrical energy storage (EES) systems - Part 5-2: Safety requirements for grid-integrated EES systems - Electrochemical-based systems"
6. NFPA 855, "Standard for the Installation of Stationary Energy Storage Systems"
